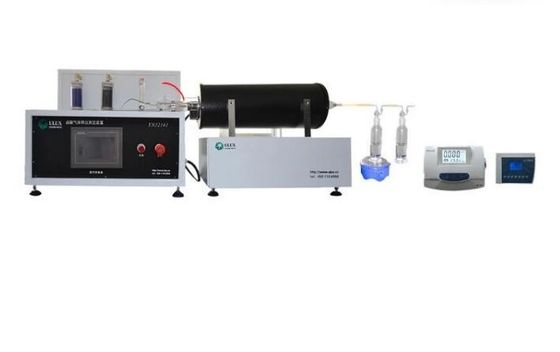

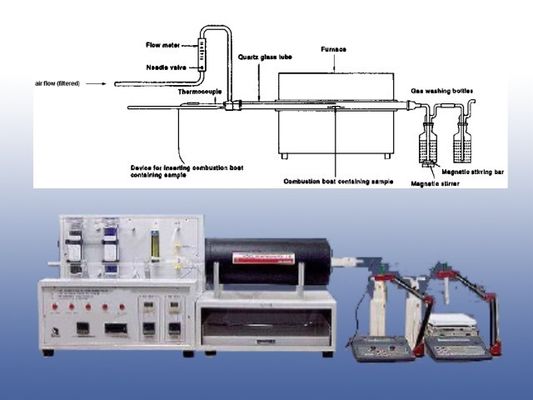

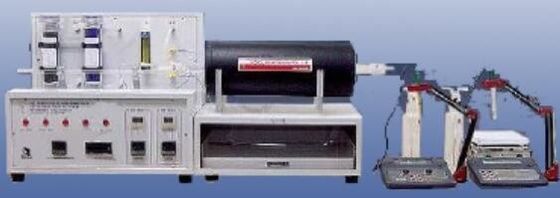

SL-7602L 가연성 시험 장비, 할로겐 방출 측정 장치

자료: 강철

표준: ISO340

분젠 버너: 내경은 10.5mm

분젠 버너 회전 각도: 조정가능한 0°~45°

작은 스테인레스 스틸 테스트 프레임: 450X300X150mm

등받이 프레임 내부 치수: 450±2×450±2mm

의자 프레임의 내부 치수: 450±2×300±2mm

대형 스테인레스 스틸 테스트 지그: 450X450X300mm

Tested Wires Length: 600mm(24 In)

Thermocouple Type: K (Ni/Cr - Ni/Al)

Flame Burn Time: 15 seconds

Standards Met: UL94, ISO 6722, IEC 60695-11-3, IEC 60695-11-4, UL94HB, V-0,1,2, 94-5VA,B, 94VTM-0,1,2, 94HBF,94HF-1,2

Burner Tube Internal Diameter: Φ 9.5mm±0.3mm

Construction Material: Stainless Steel

Tested Wires Length: 600mm(24 In)

Volume Of Chamber: >0.5m³

Suitable For: Conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appli

Volume Of Chamber: >0.5m³

Product Category: Flammability Testing Equipment

Thermocouple Type: K (Ni/Cr - Ni/Al)

Product Category: Flammability Testing Equipment

Tested Wires Length: 600mm(24 In)

Gas Flow Controls: Precision

Interior Color: Black

Construction Material: Stainless Steel

Suitable For: Conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appli

Standards Met: UL94, ISO 6722, IEC 60695-11-3, IEC 60695-11-4, UL94HB, V-0,1,2, 94-5VA,B, 94VTM-0,1,2, 94HBF,94HF-1,2

Thermocouple Type: K (Ni/Cr - Ni/Al)
