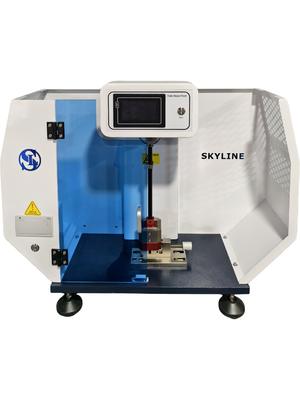

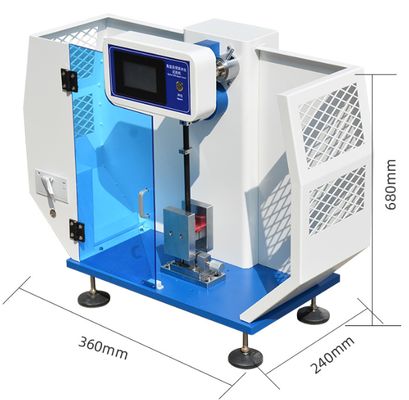

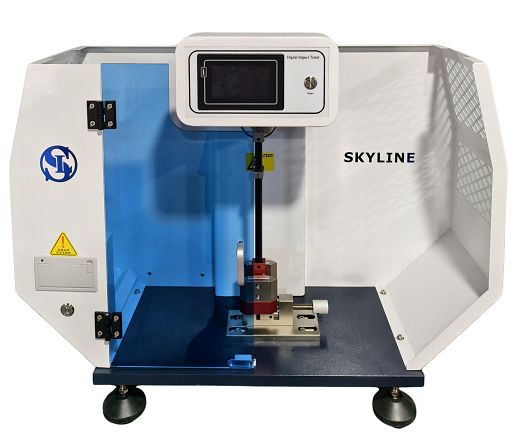

Izod & Charpy Impact Testing Machine for non-metallic materials

Izod & Charpy Impact Testing Machine for non-metallic materials

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Skyline
인증: CE, Rosh, Calibration
모델 번호: SL-FL08
결제 및 배송 조건:
최소 주문 수량: 1
가격: 협상 가능
포장 세부 사항: 합판 케이스
배달 시간: 7 영업일
지불 조건: T/T, L/C, D/A, D/P, Western Union, MoneyGram, 현금
공급 능력: 30 단위 / 월
접촉
상세 제품 설명
디스플레이 모드: 컬러 터치 스크린 (중국어 및 영어) 앵글 센서 브랜드 및 정확도: 원래 가져온 Omron 인코더, 정확도는 0.01 °입니다
에너지 디스플레이 정확도: 0.01J 충격 속도: 3.5m / s
진자 에너지: (5.5D) 2.75J, 5.5J 진자 각도: 150'
진자 중심에 블레이드 거리에 영향을 미칩니다: 335mm 턱의 상위 평면 거리에 충돌 블레이드: 22mm
지루한 가장자리 필렛 반경: R=0.8±0.2mm 기계 무게: 85KG
전원 공급 장치 전압: AC220V ± 10% 50Hz
강조하다:

Izod impact testing machine for non-metallic materials

,

Charpy impact tester for lab testing

,

non-metallic material impact testing equipment

Izod & Charpy Impact Testing Machine for Non-Metallic Materials
Izod & Charpy Impact Testing Machine for non-metallic materials 0
Product Introduction

The Izod & Charpy impact tester determines the impact toughness of non-metallic materials including plastics, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials. This pendulum impact testing machine is essential equipment for quality inspection in research institutions, universities, and non-metallic material manufacturing facilities.

Featuring simple structure and convenient operation, this digital impact test machine delivers high precision results. It incorporates advanced encoder technology for exceptional accuracy, stability, and wide measurement range. The system automatically displays impact strength and average values, corrects for energy loss, and prints comprehensive test reports.

Standards Compliance
  • ISO 180-2000 "Determination of impact strength of plastic-hard material cantilever beam"
  • JB/T8761--1998 "Plastic Cantilever Beam Impact Tester"
  • ASTM D256-2010 "Test Method for Determining Impact Strength of Plastic IZOD Pendulum"
Key Features
  • High-precision intelligent controller with LCD display for intuitive, accurate data reading
  • Carbon fiber pendulum rod (domestic use) improves rigidity and focuses impact mass on pendulum centroid for vibration-free testing and extended service life
  • Imported high-resolution digital encoder for superior angle test accuracy and stability
  • Aerodynamic hammer design with imported ball bearings minimizes mechanical friction loss
  • Automatic final result calculation with capacity to store 12 test data sets and averages
  • Bilingual (Chinese/English) operation interface with multiple unit options: J/m, KJ/m², kg-cm/cm, ft-lb/in
  • Built-in micro printer for immediate test data output
Technical Specifications
Parameter Specification
Display mode Color touch screen (Chinese and English)
Angle sensor brand and accuracy Original imported Omron encoder, accuracy to 0.01°
Energy display accuracy 0.01J
Impact speed 3.5m/s
Pendulum energy (5.5D) 2.75J, 5.5J
Pendulum angle 150°
Pendulum center to impact blade distance 335mm
Impact blade to upper plane distance of jaw 22mm
Boring edge fillet radius R=0.8±0.2mm
Machine weight 85kg
Power supply voltage AC220V±10% 50HZ
