Name: 8.5kg 11.9kg Drop Weight SATRA TM 142 Shock Impact Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-SC42
Price: 4,500.00 USD
Availability: InStock

홈 제품 소개 실험실 실험 장비

8.5kg 11.9kg Drop Weight SATRA TM 142 Shock Impact Tester

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	SKYLINE
인증:	CE
모델 번호:	SL-SC42

결제 및 배송 조건:

최소 주문 수량:	1
가격:	협상 가능
포장 세부 사항:	폴리 나무 캐스트
배달 시간:	근무일 25 일
지불 조건:	t/t
공급 능력:	1개 세트 / 달

접촉

상세 제품 설명

무게를 떨어 뜨립니다:	8.5kg (5J), 11. 9kg (7J)	테스트 속도:	테스트 속도 : 2+1 초/사이클
드롭 높이:	50mm	로드 셀 용량:	20kn
전원 공급 장치:	1Ω AC 220V	변위 센서:	0-150mm
강조하다:	8.5kg drop weight shock impact tester , 11.9kg SATRA TM 142 tester , lab testing equipment with drop weight

8.5kg 11.9kg Drop Weight SATRA TM 142 Shock Impact Tester

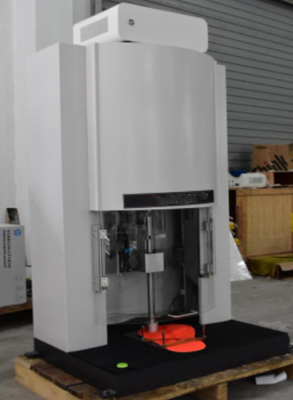

SATRA TM 142 Shock Impact Tester

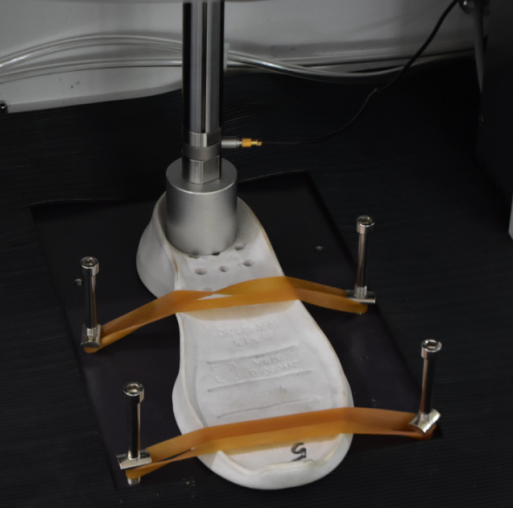

Sports shoe shock absorption testing machine

Machine Introduction

This specialized testing equipment evaluates the shock absorption characteristics and force-displacement relationship of sports shoe midsoles under rapid impact conditions. Ideal for quality control in technical supervision, footwear manufacturing, commodity inspection, arbitration, and research applications.

Key Features

High-speed signal processing system captures precise force-time measurements with graphical curve display
Advanced software performs multiple consecutive tests (26th-30th cycles analyzed statistically)
Customizable report settings with curve analysis tools (zoom, value reading)
Comprehensive data and curve printing capabilities
Reliable measurement system meeting various standard testing requirements with database management
Computer-controlled operation with intelligent software package for flexible testing protocols
Password-protected settings to ensure data integrity and prevent unauthorized operation
Standardized sample specification settings with memory function for repeated tests
Post-test analysis capabilities including unit conversion and graph modification

Measurement Parameters

The system calculates and reports multiple performance metrics including:

Peak force (FM) and maximum displacement (DM)
Energy measurements (UM, delay energy)
Time to peak force (TM)
Standardized pressure (PM) and strain (eM)
HER (delay energy ratio) and average stiffness (Sm)
Peak G measurements

Technical Specifications

Parameter	Specification
Operating System	High-speed dedicated software
Drop Weight	8.5kg (5J), 11.9kg (7J)
Impact Head	45mm diameter, R1.0±0.25mm radius, <0.2kg weight
Drop Height	50mm standard (adjustable per specimen)
Impact Energy	5J or 7J
Test Speed	2+1 seconds/cycle
Load Cell	20KN capacity, >1000Hz sampling
Displacement Sensor	0-150mm range, >1000Hz sampling (optical encoder)
Drive System	750W imported servo
Power Supply	AC 220V
