Name: TAPPI T498 Tissue Softness Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P22
Price: 4,500.00 USD
Availability: InStock

홈 제품 소개 실험실 실험 장비

TAPPI T498 Tissue Softness Test Machine

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	SKYLIE
인증:	CE, Calibration Certificate, Rosh, CO...
모델 번호:	SL-P22

결제 및 배송 조건:

최소 주문 수량:	1
포장 세부 사항:	수출 합판 패키지
배달 시간:	근무일 15 일
지불 조건:	L/C, D/P, D/A, T/T, Western Union, MoneyGram
공급 능력:	20-30 /월

접촉

상세 제품 설명

측정 범위:	(10 ~ 1000)mN	테스트 속도:	1.2mm/초
측정시간:	15s	결의안:	1mN
정확도:	± 1%	프로브 침투 깊이:	8 +0.5mm
샘플 플랫폼 좁은 폭:	5mm, 6.35mm, 10mm, 20mm	샘플 테이블 슬릿 양쪽의 평행도 오류:	≤0.05mm
전원 공급기:	AC 220V±22V, 50Hz
강조하다:	TAPPI T498 tissue softness tester , lab tissue softness testing machine , TAPPI tissue softness test equipment

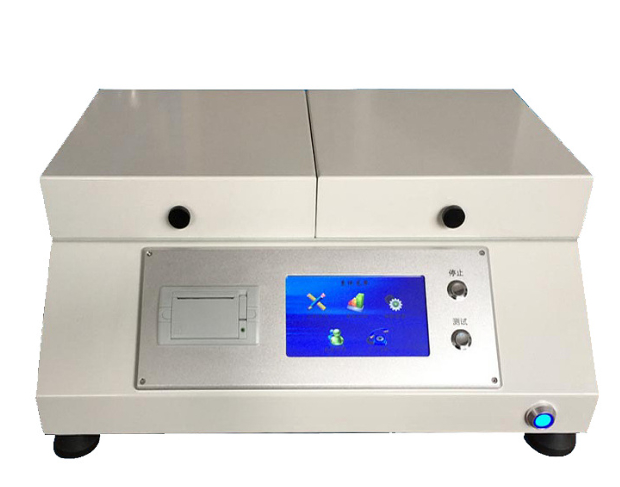

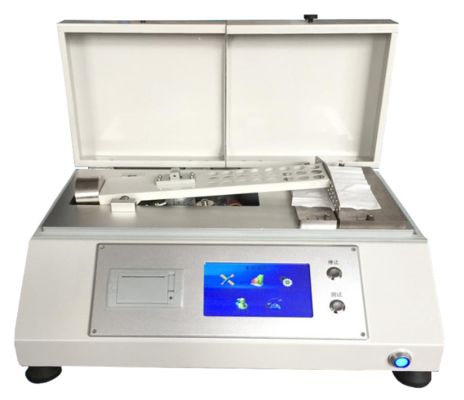

TAPPI T498 Tissue Softness Test Machine

Tissue Softness Tester

Product Overview

The tissue softness tester is a test instrument that simulates the softness of the hand. It is designed according to the relevant provisions of national standard GB8942 "Determination of paper softness". It is mainly used for the softness measurement of sheet-like soft software materials such as medium and high grade toilet paper, tobacco sheets and fabrics.

The instrument test system uses digital control technology controlled by microcomputer, featuring a humanized touch screen display with Chinese and English bilingual operating system. It realizes man-machine dialogue function with advantages of advanced technology, complete functions, reliable performance and easy operation. It is an ideal experimental equipment for papermaking, scientific research and quality inspection industries.

Test Principle

Under the specified conditions, when the sample is pressed into a certain depth (about 8mm) by the plate probe of the softness meter, the sum of the maximum vector of the anti-bending force of the sample itself and the friction force between the sample and the gap is called softness, which is expressed in millinewtons. The smaller the softness value, the softer the sample is.

Test Standards

GB/T 8942, QB/T 1060, ASTM D2923, ASTM D6828-02, TAPPI T498, INDA IST 90.3, EDANA WSP 90.3

Technical Parameters

Parameter	Specification
Measuring range	(10 ~ 1000) mN
Test speed	1.2mm/s
Measurement time	15s
Resolution	1mN
Accuracy	±1%
Probe penetration depth	8 +0.5mm
Sample platform narrow width	5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit	≤0.05mm
Display	Chinese and English 5-inch touch screen with curve display, touch screen life: about 50,000 hours
Power supply	AC 220V ± 22V, 50Hz
Transport packaging	Outer box (wooden box), inside the box (buffer material)
