ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement

ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement

브랜드 이름: SKYLINE
모델 번호: SL-F001
MOQ: 1
가격: negoitable
지불 조건: t/t
공급 능력: 1 단위/월
상세 정보
원래 장소:
중국
인증:
CE
드롭 높이:
460mm 또는 500mm
표준 표본 크기:
100 밀리미터 (L) × 100 밀리미터 (W) × 50 밀리미터 (H)
표시하다:
LCD 터치 스크린
정확성:
<1>
인쇄기:
포장 세부 사항:
합판 케이스
공급 능력:
1 단위/월
강조하다:

460mm Drop Height Spong & Foam Ball Rebound Tester

,

500mm Drop Height Sponge Elasticity Tester

,

16.8g Steel Ball Foam Rebound Rate Tester

제품 설명
ISO 8307 Sponge & Foam Ball Rebound Tester Machine
Sponge Elasticity & Rebound Rate Tester
Machine Introduction
This rebound tester is designed and manufactured according to ASTM D3574, ISO 8307, and GB/T6670-97 standards. It precisely measures the falling ball resilience of soft polyurethane foams by calculating the maximum rebound height of a steel ball and determining the percentage of the falling height. The rebound rate accurately represents the foam's resilience characteristics.
Key Features
  • Microprocessor-controlled operation with touch screen interface
  • Chinese language display for easy operation
  • Built-in printer for test data output
  • High measurement accuracy (<1.5%)
  • Automatic calculation of average rebound rate
  • Safe, reliable, and precise testing mechanism
Technical Parameters
Parameter Specification
Steel ball drop distance GB 460±0.5%mm or ASTM/ISO 500±0.5%mm
Steel ball diameter ¢16±0.05 mm
Steel ball weight 16.8g ± 1.5 g
Accuracy <1.5%
Display LCD Touch Screen interface
Standard sample size 100mm(L) × 100mm(W) × 50mm(H)
Printer Built-in
Main Configuration
  • Mainframe unit (including release mechanism and height adjustment mechanism)
  • Optical fiber distance measuring sensors
  • Control box with LCD touch screen
  • Steel ball and magnetic bar
Test Standards
Compliant with ASTM D3574 and ISO 8307 international testing standards.

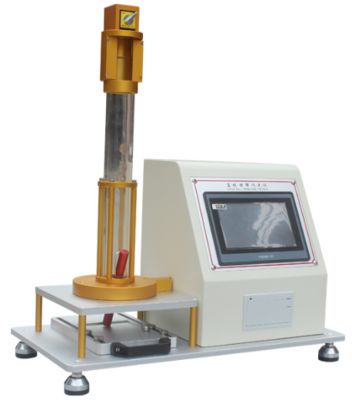

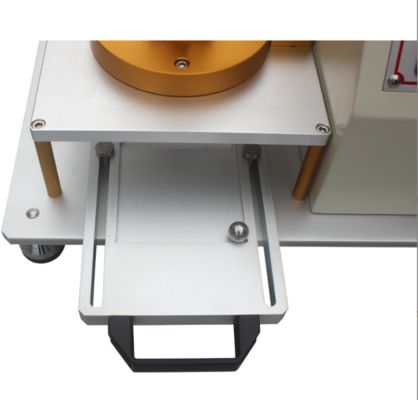

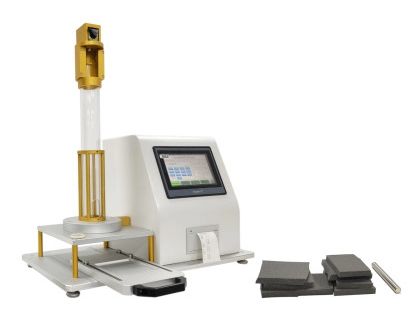

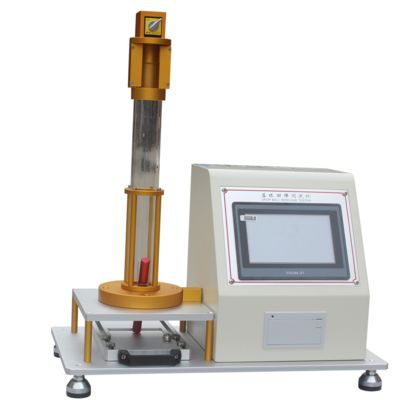

Product Images
ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement 0 ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement 1 ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement 2
