BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture

BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture

브랜드 이름: Skyline
모델 번호: SL-S34
모크: 1
지불 조건: T/T,L/C,D/A,D/P,웨스턴 유니온,MoneyGram
공급 능력: 달 당 15 세트
상세 정보
원래 장소:
중국
인증:
CE, Rosh, Calibration
작은 스테인레스 스틸 테스트 프레임:
450X300X150mm
등받이 프레임 내부 치수:
450±2×450±2mm
의자 프레임의 내부 치수:
450±2×300±2mm
대형 스테인레스 스틸 테스트 지그:
450X450X300mm
부탄의 기류:
45±2mL/min(25℃일 때)
불꽃 높이:
35mm
스테인레스 스틸 연소관 외경:
외경: 8.0±0.1mm 내경: 6.5±0.1mm 길이: 200+/-5mm
포장 세부 사항:
합판 케이스
공급 능력:
달 당 15 세트
강조하다:

Stainless Steel Frame Flammability Tester

,

35mm Flame Height BS 5852 Tester

,

450X450X300mm Testing Jig Furniture Flammability Tester

제품 설명

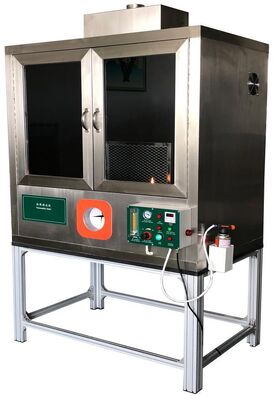

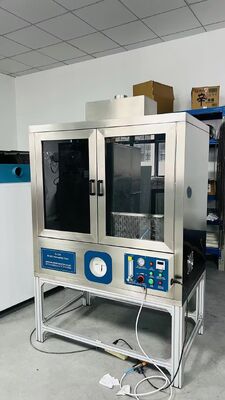

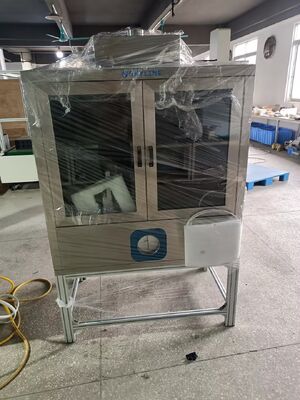

BS 5852 Flammability Tester for Upholstered Furniture and Foam Testing
This professional testing equipment evaluates the ignitability of furniture assemblies when exposed to specific heat sources, providing essential reference data for furniture design and manufacturing.
BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 0 BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 1
Design Overview
BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 2
Product Application
This machine simulates the ignitability of specific furniture assembly components when exposed to controlled heat sources, delivering critical reference data for furniture design and manufacturing processes.
Testing Standard
BS 5852
Technical Specifications
Small Stainless Steel Testing Frame: 450×300×150mm
Inner dimensions of backrest frame 450±2×300±2mm
Inner dimensions of chair frame 450±2×150±2mm
Large Stainless Steel Testing Jig: 450×450×300mm
Inner dimensions of backrest frame 450±2×450±2mm
Inner dimensions of chair frame 450±2×300±2mm
The airflow of butane 45 ± 2mL / min (when 25℃)
Flame height 35mm
Stainless steel combustion tube specifications Outer diameter: 8.0±0.1mm
Inner diameter: 6.5±0.1mm
Length: 200±5mm
Optional Accessories
  • No. 0 Fire source: Cigarettes - Length: 68mm, Diameter: 8mm, Weight: 1g, Combustion speed: 50mm/12.03min
  • White polyester cloth - BS 5852
  • Wooden Frame - BS 5852
  • No. 5 Wooden Frame - BS 5852
  • No. 6 Wooden Frame - BS 5852
  • No. 7 Wooden Frame - BS 5852
  • Flame-retardant foam - BS 5852
  • Combustible foam - BS 5852
  • CaCI2.6H20 - BS 5852
  • NaHCO3 - BS 5852
  • Wetting agent - BS 5852
  • Nozzles - BS 5852
