EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing

EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing

브랜드 이름: SKYLINE
모델 번호: SL-F62
모크: 1
가격: 협상 가능
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력: 10 세트/월
상세 정보
원래 장소:
중국
인증:
CE, CO, Rosh, Form E, Calibrate Certificate...
포장 세부 사항:
수출 합판 패키지
공급 능력:
10 세트/월
강조하다:

EN 1149-3 protective clothing tester

,

triboelectric charging decay tester

,

protective clothing lab testing equipment

제품 설명
EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing
Triboelectric Charging Decay Tester
EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing 0 EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing 1
Introduction

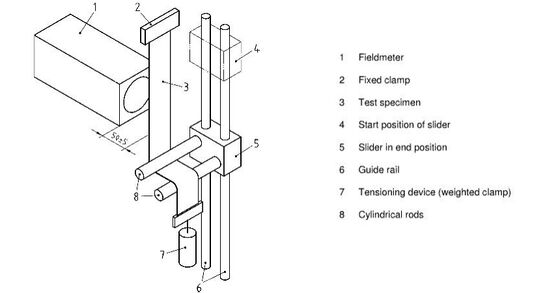

The Triboelectric Charging Tester is professionally designed to determine the charging decay by triboelectric charging method according to EN 1149.3. Test materials are charged by rubbing against cylindrical rods mounted on a vertically running slider. The electrical field strength from the charge generated on the test material is observed and recorded using an electrostatic fieldmeter connected to a graphical recording device.

EN 1149-3 Test1 Triboelectric Charging Decay Tester for Protective Clothing 2
Test Standard
EN 1149.3
Features
  • Equipped with standard cylindrical rods and slider
  • Built-in tension meter provides precise loading on testing materials
  • PC with evaluation software included
Product Specification
  • Cylindrical rods: Aluminum and HDPE
  • Field meter measuring range: Up to 200kV/m
  • Response time: <1ms
  • Loading pressure: 1.3±0.05N
  • Speed: 0.2±0.02m/s
  • Power supply: 220V 50Hz-60 Hz
  • Dimensions: 350mm×350mm×1070mm
  • Net weight: 25 kg
