Name: Repeat Compression Tester for Edge of Mattress Testing EN1725 Mattress Edge fatigue test machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T70I-B
Price: 4,500.00 USD
Availability: InStock

홈 제품 소개 매트리스 테스트 머신

Repeat Compression Tester for Edge of Mattress Testing EN1725 Mattress Edge fatigue test machine

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	SKYLINE
인증:	CE
모델 번호:	SL-T70I-B

결제 및 배송 조건:

최소 주문 수량:	1
가격:	negoitable
포장 세부 사항:	합판 케이스
배달 시간:	근무일 25 일
지불 조건:	t/t
공급 능력:	1 단위/월

접촉

상세 제품 설명

제어 모드:	버튼 컨트롤	압력판:	공기압실린더
계수기:	9999을 설정할 수 있습니다	로드 용량:	1000N
시험 주기:	(3+/-1)초 동안 유지
강조하다:	Repeat Compression Tester mattress EN1725 , Mattress Edge fatigue test machine , EN1725 Mattress Testing Machine

Repeat Compression Tester for Edge of Mattress Testing EN1725 Mattress Edge fatigue test machine

Product Specifications

Attribute	Value
Control mode	Botton control
Pressure plate	Pneumatic cylinder
Counter	9999 can be settable
Load capacity	1000N
Test Cycle	Maintain for (3+/-1)s

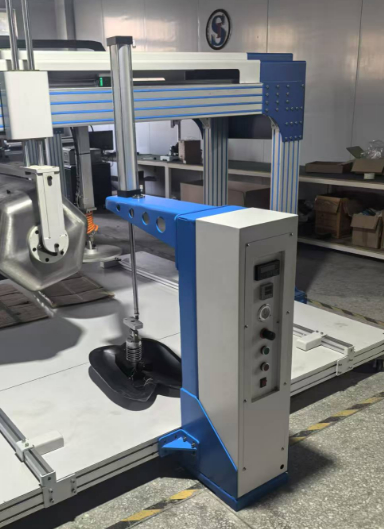

Machine Introduction

According to EN 1725 test standard for mattress edge testing, using the pressure plate of the buttocks is used to simulate the pressure generated by the human body sitting on the edge of the mattress, and the durability of the mattress edge is tested by repeated compression for a certain number of times.

Technical Parameters

Test load capacity	1000N
Test Cycle	5000
Main time	Maintain for (3+/-1)s

Features

The whole machine frame made of high quality aluminum, with smart and elegant shape
Delta brand PLC and Servo Motors
Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in DELTA servo motor
Machine configuration alarm device, indicating the safe operation
Electric lifts the Roller, easy to operate
PLC controller with large colorful touch panel
Automatically stops after preset cycles completed
Over moving limit protection
Wooden roller softly contacts the surface of the mattress

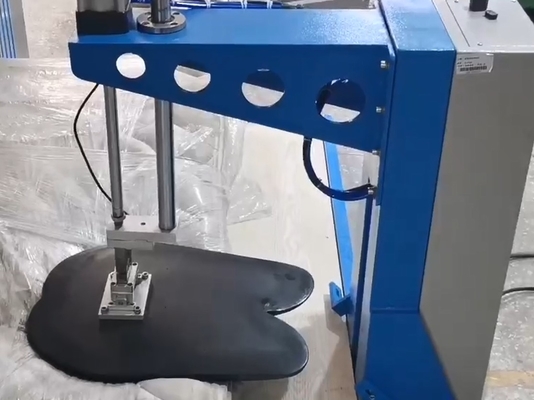

Compression Plate
